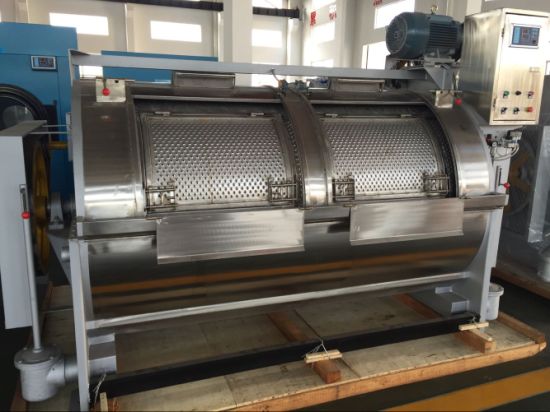

Washing Machine (PEI-SL Class)
Washing Machine (PEI-SL Class)
The PEI SL Class Washing Machines are better than your ordinary washing machines due to provision of Auto timer, Forward Reverse Mechanism with a QDV (Quick Drain Valve) to save that valuable washing time.
Our design has the following features –
- Fully tested lifter mechanism that provides excellent tumbling action by the washing drum
- Heavy duty and reliable design thanks to excellent raw material procurement standards
- Available in Reduction Box with Motor + Multi Grooved V Belt Pulley or Chain + Sprocket Variants as per customer requirements
| TECHNICAL SPECIFICATIONS OF PEI-SL CLASS WASHING MACHINES | ||||||
|---|---|---|---|---|---|---|
|
Model |
|
PEI-SL 200 |
PEI-SL 270 |
PEI-SL 330 |
PEI-SL 400 |
|
|
CAPACITY |
Kg |
125 |
165 |
200 |
250 |
|
|
Inner Drum |
||||||
|
Diameter |
mm |
1065 |
1220 |
1370 |
1450 |
|
|
Length |
mm |
2290 |
2290 |
2290 |
2440 |
|
|
Volume |
Litre |
2000 |
2670 |
3375 |
4050 |
|
|
Speed |
rpm |
32 |
30 |
24 |
22 |
|
|
Lifters |
nos. |
3 |
4 |
4 |
4 |
|
|
Outer Drum |
||||||
|
Diameter |
mm |
1220 |
1370 |
1520 |
1600 |
|
|
Length |
mm |
2435 |
2435 |
2450 |
2620 |
|
|
Liquid Holding Capacity |
Litre |
1000 |
1350 |
1650 |
2025 |
|
|
Electricals |
||||||
|
Drive Motor |
HP |
10 |
12.5 |
15 |
20 |
|
|
Connected Load |
Kw |
7.5 |
9.38 |
11.25 |
15 |
|
|
Supply |
440 V, 3 ph, 50 Hz, N, AC |
|||||
|
Water |
||||||
|
Cold Water (Inlet) |
NB |
50 |
50 |
65 |
65 |
|
|
Hot Water - Optional (Inlet) |
NB |
50 |
50 |
65 |
65 |
|
|
Drain (outlet) |
- |
150 |
150 |
150 |
150 |
|
|
Steam |
||||||
|
Direct Injection (Inlet) |
NB |
25 |
25 |
25 |
25 |
|
|
Indirect Heating - optional (Inlet) |
NB |
15 |
15 |
15 |
15 |
|
|
Pressure |
kg/cm^2 |
7 |
7 |
7 |
7 |
|
|
Air (optional) |
||||||
|
Inlet |
NB |
8 |
8 |
8 |
8 |
|
|
Pressure |
kg/cm^2 |
7 |
7 |
7 |
7 |
|
|
Consumption |
Liter/m |
60 |
60 |
60 |
60 |
|
|
Overall Dimension |
||||||
|
Length |
mm(A) |
3350 |
3350 |
3360 |
3630 |
|
|
Depth |
mm(B) |
1350 |
1860 |
2100 |
2040 |
|
|
Height |
mm(C) |
1590 |
1580 |
1730 |
2050 |
|
