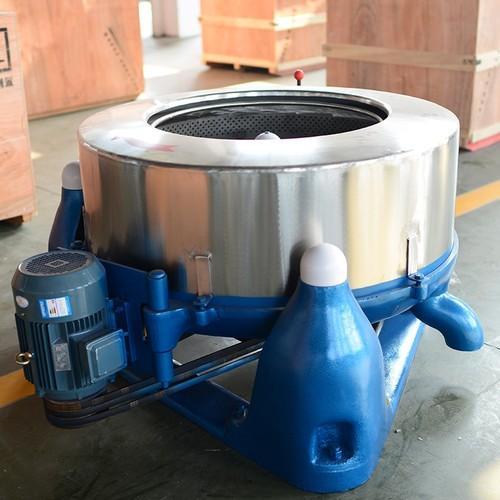

Hydro Extractor
Hydro Extractor (PEI - HE)
Moisture is number 1 enemy of clothes. With a PEI-HE Series we have designed a high efficiency water removal device that is soft on clothes and hard on water content within the clothes. High Efficiency of the PEI-HE Series of Hydro Extractor means that we are successfully able to remove between 90-95% of the water content from the clothes while maintaining high level of overall durability for the clothes.
Our design has the following features –
- Stainless Steel Construction for Inner Spinning Drum and WCB (Water Collection Basket)
- Heavy Duty Mounts for handling high spinning cycles
- Ultra-Duty Drive with Multi- Bearing Setup
- Dynamically Balanced Inner Basket
- Note- Solid RCC Foundation is desired for safe operation of this machine
| TECHNICAL SPECIFICATIONS OF PEI-HE CLASS Hydro Extractor | |||||||
|---|---|---|---|---|---|---|---|
|
Model |
|
PEI-HE 8 |
PEI-HE 15 |
PEI-HE 25 |
PEI-HE 35 |
PEI-HE 50 |
PEI-HE 75 |
|
CAPACITY |
Kg |
8 |
15 |
25 |
35 |
50 |
75 |
|
Inner Drum |
|||||||
|
Diameter |
mm |
400 |
515 |
650 |
760 |
925 |
1070 |
|
Depth |
mm |
250 |
280 |
330 |
360 |
380 |
400 |
|
Volume |
Litre |
32 |
60 |
100 |
160 |
255 |
360 |
|
Speed |
rpm |
1440 |
1200 |
1200 |
1100 |
950 |
950 |
|
Outer Drum |
|||||||
|
Diameter |
mm |
530 |
650 |
800 |
900 |
1100 |
1245 |
|
Depth |
mm |
420 |
450 |
500 |
525 |
550 |
575 |
|
Electricals |
|||||||
|
Drive Motor |
HP |
2 |
3 |
5 |
5 |
7.5 |
10 |
|
Connected Load |
Kw |
1.5 |
2.25 |
3.75 |
5.63 |
7.5 |
|
|
Supply |
440 V, 3 ph, 50 Hz, N, AC |
||||||
|
Drain (outlet) |
NB |
50 |
50 |
80 |
80 |
100 |
100 |
|
Overall Dimension |
|||||||
|
Width |
mm(A) |
785 |
930 |
1220 |
1260 |
1460 |
1620 |
|
Depth |
mm(B) |
900 |
1150 |
1340 |
1480 |
1750 |
1920 |
|
Height |
mm(C) |
850 |
1000 |
1100 |
1100 |
1150 |
|
